ZooKeeper源码阅读——ServerCnxnFactory

2021-08-29

ServerCnxnFactory是zk中负责服务端与客户端网络IO的工厂，有两种实现，下面分别分析两种实现。

NIOServerCnxnFactory

看一眼javadoc

NIOServerCnxnFactory implements a multi-threaded ServerCnxnFactory using NIO non-blocking socket calls. Communication between threads is handled via queues. - 1 accept thread, which accepts new connections and assigns to a selector thread - 1-N selector threads, each of which selects on 1/N of the connections. The reason the factory supports more than one selector thread is that with large numbers of connections, select() itself can become a performance bottleneck. - 0-M socket I/O worker threads, which perform basic socket reads and writes. If configured with 0 worker threads, the selector threads do the socket I/O directly. - 1 connection expiration thread, which closes idle connections; this is necessary to expire connections on which no session is established. Typical (default) thread counts are: on a 32 core machine, 1 accept thread, 1 connection expiration thread, 4 selector threads, and 64 worker threads.

大概意思就是：
NIOServerCnxnFactory使用NIO non-blocking socket calls实现了一个多线程的ServerCnxnFactory。 多线程之间通过队列通信。

  • 1个accept线程负责接收新的连接并为其选择一个selector线程。
  • 多个(1-N个)selector线程，负责对已接收的连接做select操作。使用多个selector线程的原因是，当有大量连接时，select()操作本身也会成为性能瓶颈。
  • 多个(0-M个)worker线程，负责socker的IO读写。如果配置的worker线程数为0，selector线程将会直接执行socket读写。
  • 1个connection expiration线程，用来将空闲的连接失效(将没有session的连接失效是有必要的)。

默认的线程数量是：在32核心的机器上，1个accept线程，1个connection expiration线程，4个selector线程，64个worker线程

看一下每种线程的实现

AcceptThread

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public void run() {
    try {
        while (!stopped && !acceptSocket.socket().isClosed()) {
            try {
                select();
            } catch (RuntimeException e) {
                LOG.warn("Ignoring unexpected runtime exception", e);
            } catch (Exception e) {
                LOG.warn("Ignoring unexpected exception", e);
            }
        }
    } finally {
        closeSelector();
        // This will wake up the selector threads, and tell the
        // worker thread pool to begin shutdown.
        if (!reconfiguring) {
            NIOServerCnxnFactory.this.stop();
        }
        LOG.info("accept thread exitted run method");
    }
}

其实就是在一个循环中不断的调用select方法

看一下select

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

private void select() {
    try {
        selector.select();

        Iterator<SelectionKey> selectedKeys = selector.selectedKeys().iterator();
        while (!stopped && selectedKeys.hasNext()) {
            SelectionKey key = selectedKeys.next();
            selectedKeys.remove();

            if (!key.isValid()) {
                continue;
            }
            if (key.isAcceptable()) {
                if (!doAccept()) {
                    // If unable to pull a new connection off the accept
                    // queue, pause accepting to give us time to free
                    // up file descriptors and so the accept thread
                    // doesn't spin in a tight loop.
                    pauseAccept(10);
                }
            } else {
                LOG.warn("Unexpected ops in accept select {}", key.readyOps());
            }
        }
    } catch (IOException e) {
        LOG.warn("Ignoring IOException while selecting", e);
    }
}

如果selector’s selected-key set不是空，就遍历每一个key，对acceptable的key进行doAccept操作

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
private boolean doAccept() {
    boolean accepted = false;
    SocketChannel sc = null;
    try {
        sc = acceptSocket.accept();
        accepted = true;
        if (limitTotalNumberOfCnxns()) {
            throw new IOException("Too many connections max allowed is " + maxCnxns);
        }
        InetAddress ia = sc.socket().getInetAddress();
        int cnxncount = getClientCnxnCount(ia);

        if (maxClientCnxns > 0 && cnxncount >= maxClientCnxns) {
            throw new IOException("Too many connections from " + ia + " - max is " + maxClientCnxns);
        }

        LOG.debug("Accepted socket connection from {}", sc.socket().getRemoteSocketAddress());

        sc.configureBlocking(false);

        // Round-robin assign this connection to a selector thread
        if (!selectorIterator.hasNext()) {
            selectorIterator = selectorThreads.iterator();
        }
        SelectorThread selectorThread = selectorIterator.next();
        if (!selectorThread.addAcceptedConnection(sc)) {
            throw new IOException("Unable to add connection to selector queue"
                                  + (stopped ? " (shutdown in progress)" : ""));
        }
        acceptErrorLogger.flush();
    } catch (IOException e) {
        // accept, maxClientCnxns, configureBlocking
        ServerMetrics.getMetrics().CONNECTION_REJECTED.add(1);
        acceptErrorLogger.rateLimitLog("Error accepting new connection: " + e.getMessage());
        fastCloseSock(sc);
    }
    return accepted;
}
  • 第5行，接收连接
  • 第7行，校验当前连接数是否超过最大允许连接数
  • 第13行，校验是是否超过同一个IP允许的最大连接数
  • 第25行，选择一个selector线程
  • 第26行，将sc交给selector线程

SelectorThread

先看addAcceptedConnection方法

1
2
3
4
5
6
7
public boolean addAcceptedConnection(SocketChannel accepted) {
    if (stopped || !acceptedQueue.offer(accepted)) {
        return false;
    }
    wakeupSelector();
    return true;
}
  • 第2行，将accepted(客户端socket)添加到队列acceptedQueue
  • 第5行，唤醒selector线程

看一下selector线程的核心方法run

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
public void run() {
    try {
        while (!stopped) {
            try {
                select();
                processAcceptedConnections();
                processInterestOpsUpdateRequests();
            } catch (RuntimeException e) {
                LOG.warn("Ignoring unexpected runtime exception", e);
            } catch (Exception e) {
                LOG.warn("Ignoring unexpected exception", e);
            }
        }

        // Close connections still pending on the selector. Any others
        // with in-flight work, let drain out of the work queue.
        for (SelectionKey key : selector.keys()) {
            NIOServerCnxn cnxn = (NIOServerCnxn) key.attachment();
            if (cnxn.isSelectable()) {
                cnxn.close(ServerCnxn.DisconnectReason.SERVER_SHUTDOWN);
            }
            cleanupSelectionKey(key);
        }
        SocketChannel accepted;
        while ((accepted = acceptedQueue.poll()) != null) {
            fastCloseSock(accepted);
        }
        updateQueue.clear();
    } finally {
        closeSelector();
        // This will wake up the accept thread and the other selector
        // threads, and tell the worker thread pool to begin shutdown.
        NIOServerCnxnFactory.this.stop();
        LOG.info("selector thread exitted run method");
    }
}
  • 第5行，select有读写事件的socket，然后交给worker线程处理(如果worker线程数为0，selector线程会直接执行)
  • 第6行，处理已接收的连接，注册OP_READ
  • 第7行，处理InterestOps变更的事件

WorkerService

核心方法是

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
public void schedule(WorkRequest workRequest, long id) {
    if (stopped) {
        workRequest.cleanup();
        return;
    }

    ScheduledWorkRequest scheduledWorkRequest = new ScheduledWorkRequest(workRequest);

    // If we have a worker thread pool, use that; otherwise, do the work
    // directly.
    int size = workers.size();
    if (size > 0) {
        try {
            // make sure to map negative ids as well to [0, size-1]
            int workerNum = ((int) (id % size) + size) % size;
            ExecutorService worker = workers.get(workerNum);
            worker.execute(scheduledWorkRequest);
        } catch (RejectedExecutionException e) {
            LOG.warn("ExecutorService rejected execution", e);
            workRequest.cleanup();
        }
    } else {
        // When there is no worker thread pool, do the work directly
        // and wait for its completion
        scheduledWorkRequest.run();
    }
}

可以看到，如果worker线程的数量不大于0，就会直接使用调用线程执行

ConnectionExpirerThread

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public void run() {
    try {
        while (!stopped) {
            long waitTime = cnxnExpiryQueue.getWaitTime();
            if (waitTime > 0) {
                Thread.sleep(waitTime);
                continue;
            }
            for (NIOServerCnxn conn : cnxnExpiryQueue.poll()) {
                ServerMetrics.getMetrics().SESSIONLESS_CONNECTIONS_EXPIRED.add(1);
                conn.close(ServerCnxn.DisconnectReason.CONNECTION_EXPIRED);
            }
        }

    } catch (InterruptedException e) {
        LOG.info("ConnnectionExpirerThread interrupted");
    }
}

ConnectionExpirerThread就是将cnxnExpiryQueue队列中的连接关闭

启动流程

配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

@Override
public void configure(InetSocketAddress addr, int maxcc, int backlog, boolean secure) throws IOException {
    if (secure) {
        throw new UnsupportedOperationException("SSL isn't supported in NIOServerCnxn");
    }
    configureSaslLogin();

    maxClientCnxns = maxcc;
    initMaxCnxns();
    sessionlessCnxnTimeout = Integer.getInteger(ZOOKEEPER_NIO_SESSIONLESS_CNXN_TIMEOUT, 10000);
    // We also use the sessionlessCnxnTimeout as expiring interval for
    // cnxnExpiryQueue. These don't need to be the same, but the expiring
    // interval passed into the ExpiryQueue() constructor below should be
    // less than or equal to the timeout.
    cnxnExpiryQueue = new ExpiryQueue<NIOServerCnxn>(sessionlessCnxnTimeout);
    expirerThread = new ConnectionExpirerThread();

    int numCores = Runtime.getRuntime().availableProcessors();
    // 32 cores sweet spot seems to be 4 selector threads
    numSelectorThreads = Integer.getInteger(
        ZOOKEEPER_NIO_NUM_SELECTOR_THREADS,
        Math.max((int) Math.sqrt((float) numCores / 2), 1));
    if (numSelectorThreads < 1) {
        throw new IOException("numSelectorThreads must be at least 1");
    }

    numWorkerThreads = Integer.getInteger(ZOOKEEPER_NIO_NUM_WORKER_THREADS, 2 * numCores);
    workerShutdownTimeoutMS = Long.getLong(ZOOKEEPER_NIO_SHUTDOWN_TIMEOUT, 5000);

    String logMsg = "Configuring NIO connection handler with "
        + (sessionlessCnxnTimeout / 1000) + "s sessionless connection timeout, "
        + numSelectorThreads + " selector thread(s), "
        + (numWorkerThreads > 0 ? numWorkerThreads : "no") + " worker threads, and "
        + (directBufferBytes == 0 ? "gathered writes." : ("" + (directBufferBytes / 1024) + " kB direct buffers."));
    LOG.info(logMsg);
    for (int i = 0; i < numSelectorThreads; ++i) {
        selectorThreads.add(new SelectorThread(i));
    }

    listenBacklog = backlog;
    this.ss = ServerSocketChannel.open();
    ss.socket().setReuseAddress(true);
    LOG.info("binding to port {}", addr);
    if (listenBacklog == -1) {
        ss.socket().bind(addr);
    } else {
        ss.socket().bind(addr, listenBacklog);
    }
    ss.configureBlocking(false);
    acceptThread = new AcceptThread(ss, addr, selectorThreads);
}

初始化参数：

  • maxClientCnxns: 一个ip允许的最大连接数
  • maxCnxns: 允许的最大连接数
  • sessionlessCnxnTimeout：
  • cnxnExpiryQueue: 连接失效队列

创建各种线程

启动

1
2
3
4
5
6
7
8
9
@Override
public void startup(ZooKeeperServer zks, boolean startServer) throws IOException, InterruptedException {
    start();
    setZooKeeperServer(zks);
    if (startServer) {
        zks.startdata();
        zks.startup();
    }
}

核心是在start中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

@Override
public void start() {
    stopped = false;
    if (workerPool == null) {
        workerPool = new WorkerService("NIOWorker", numWorkerThreads, false);
    }
    for (SelectorThread thread : selectorThreads) {
        if (thread.getState() == Thread.State.NEW) {
            thread.start();
        }
    }
    // ensure thread is started once and only once
    if (acceptThread.getState() == Thread.State.NEW) {
        acceptThread.start();
    }
    if (expirerThread.getState() == Thread.State.NEW) {
        expirerThread.start();
    }
}

创建workerPool，并启动各种线程

细节分析

maxClientCnxns

这个参数是控制同一个ip允许的最大连接数

在NIOServerCnxnFactory中，使用ipMap实现的

1
2
// ipMap is used to limit connections per IP
private final ConcurrentHashMap<InetAddress, Set<NIOServerCnxn>> ipMap = new ConcurrentHashMap<InetAddress, Set<NIOServerCnxn>>();

key是ip，value是ip对应的NIOServerCnxn集合

在selector线程执行processAcceptedConnections方法时，会为新连接创建NIOServerCnxn对象cnxn，并且添加到ipMap

在accept线程执行doAccept方法时，会对当前的clientCnxn数量做校验，从而实现maxClientCnxns的功能

IOWorkerRequest

在selector线程执行handleIO方法时，会创建IOWorkerRequest对象，然后交给workPool处理

IOWorkerRequest.doWork方法，主要做一下几件事

  • 调用NIOServerCnxn.doIO进行socket读写
  • 更新NIOServerCnxn的过期时间

NIOServerCnxn

这个类是负责与客户端通信的，每个客户端对应一个NIOServerCnxn
NIOServerCnxn.doIO方法中，会处理读写事件

读事件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
private void readPayload() throws IOException, InterruptedException, ClientCnxnLimitException {
    if (incomingBuffer.remaining() != 0) { // have we read length bytes?
        int rc = sock.read(incomingBuffer); // sock is non-blocking, so ok
        if (rc < 0) {
            handleFailedRead();
        }
    }

    if (incomingBuffer.remaining() == 0) { // have we read length bytes?
        incomingBuffer.flip();
        packetReceived(4 + incomingBuffer.remaining());
        if (!initialized) {
            readConnectRequest();
        } else {
            readRequest();
        }
        lenBuffer.clear();
        incomingBuffer = lenBuffer;
    }
}
  • 第13行，如果没有初始化过，读取连接请求，会调用zkServer.processConnectRequest方法
  • 第15行，读取其他请求，会调用zkServer.processPacket方法

所以请求都是交给zkServer处理的

写事件

NettyServerCnxnFactory

使用Netty来支持底层网络通信，就要是要到Netty中的channel pipeline.
CnxnChannelHandler是NettyServerCnxnFactory使用 Netty时最重要的一个Channel Handler.

对比NIOServerCnxnFactory，看下NettyServerCnxnFactory.CnxnChannelHandler是如何实现的

maxClientCnxns

在CnxnChannelHandler的channelActive方法中，会对该配置进行校验

1
2
3
4
5
6
7
InetAddress addr = ((InetSocketAddress) channel.remoteAddress()).getAddress();
if (maxClientCnxns > 0 && getClientCnxnCount(addr) >= maxClientCnxns) {
    ServerMetrics.getMetrics().CONNECTION_REJECTED.add(1);
    LOG.warn("Too many connections from {} - max is {}", addr, maxClientCnxns);
    channel.close();
    return;
}

和NIOServerCnxnFactory一样，NettyServerCnxnFactory内部也有一个ipMap，用来记录同一个IP地址的连接数量

1
private final Map<InetAddress, AtomicInteger> ipMap = new ConcurrentHashMap<>();

channelRead

当有读事件时，Netty会调用CnxnChannelHandler.channelRead方法，将消息交给NettyServerCnxn处理，消息的处理流程类似于NIOServerCnxn

总结

  • 想要将NIOServerCnxnFactory的线程模型和Netty的线程模型做个对比，
    想画图，不会画，Netty的代码之前也看过，但好像很模糊，很不清晰，所以这块先放一放
  • 查看NIOServerCnxnFactory的历史代码，可以看到这个类的轨迹，看了一个第一次提交是在2012年，当时的设计还没有现在这么复杂的线程模型，为啥现在搞得这么复杂，为啥不直接使用Netty的实现
  • 这两种实现下，编解码是怎么做的

NIOServerCnxnFactory的线程模型

NettyServerCnxnFactory的线程模型

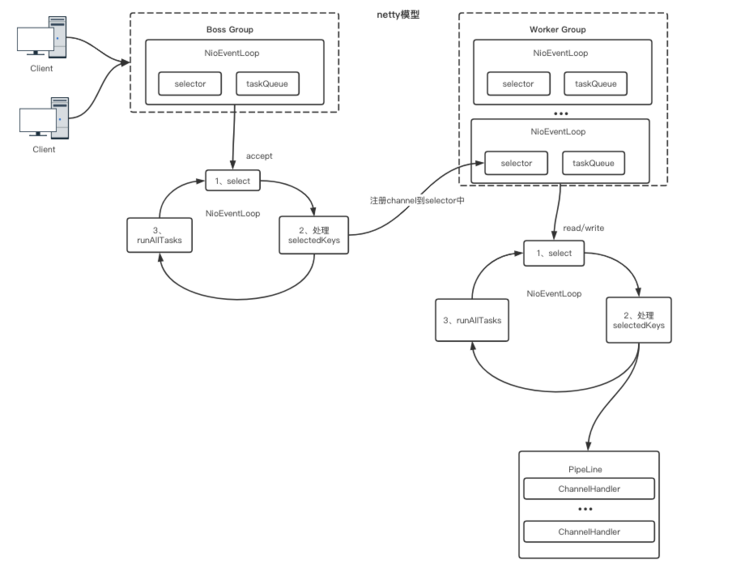

Netty的线程模型
Netty

图片来自: https://segmentfault.com/a/1190000040392205

Tags: ZooKeeper 源码阅读
← Spring的坑——Valid ZooKeeper源码阅读——ZooKeeperServer →
