mvc-controlless——我的第一个开源库

2021-07-19

一个可以将Service接口模拟为Controller的库

将@Service直接暴露为http接口

方便测试的小工具，可以将service直接暴露为http接口。
仅仅是作为测试使用，并不推荐用于生产环境哦。

思路

  1. 扫描service接口及方法
  2. 将service方法注册到spring mvc requestMapping中，交由spring mvc管理
  3. 解决参数映射、结果映射的问题

实现

按照上面的思路，开始一个个解决

扫描service接口及方法

这个很简单，通过bean工厂获取service bean，然后再通过反射获取service的方法即可，代码如下

1
2
//获取service bean
Map<String, Object> serviceBeans = applicationContext.getBeansWithAnnotation(Service.class);

反射获取service方法

1
2
3
4
5
6
7
8
9
        Class<?> beanClass = bean.getClass();
        String simpleName = beanClass.getSimpleName();
        Class<?>[] interfaces = ClassUtils.getAllInterfacesForClass(beanClass);
        for (Class<?> itf : interfaces) {
            Method[] methods = itf.getDeclaredMethods();
            for (Method method : methods) {
//                addMapping(bean, simpleName, method);
            }
        }

将service方法注册到spring mvc requestMapping中，交由spring mvc管理

这个没有思路，只能调试源码，看spring mvc是怎么用的，然后再想

跟随源码
DispatcherServlet#doService->DispatcherServlet#doDispatch->DispatcherServlet#getHandler，可以看到一个重要的类HandlerMapping，官方文档和java doc都有介绍

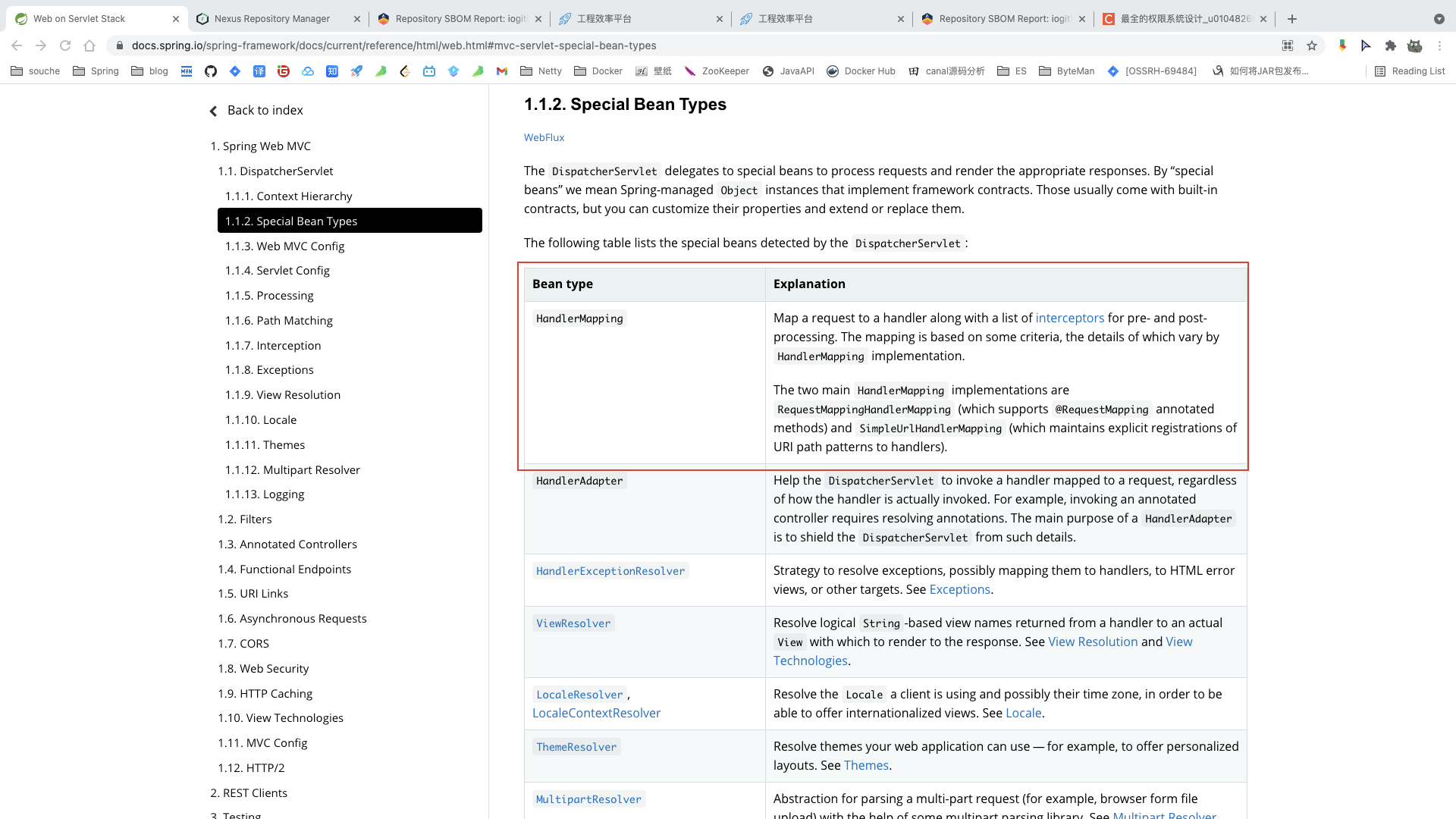

在这里插入图片描述

HandlerMapping的解释就是：用来将一个request映射到对应的处理器，有两个主要的实现，其中一个是RequestMappingHandlerMapping（用来支持@RequestMapping注解声明的方法）

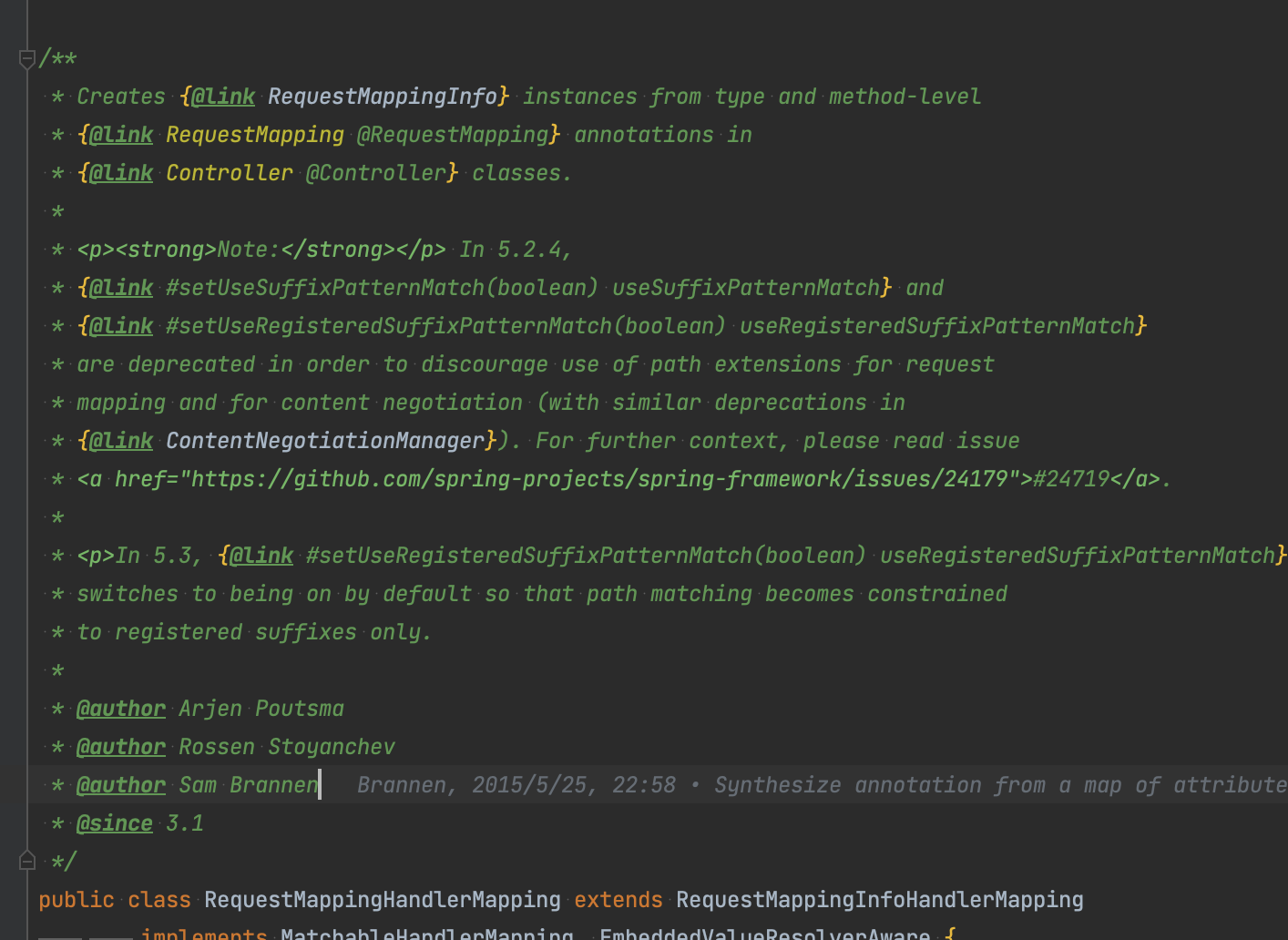

看到这里好像是找到了下一个比较重要的类RequestMappingHandlerMapping，看一下它的文档
在这里插入图片描述

根据@RequestMapping和@Controller创建RequestMappingInfo的实例

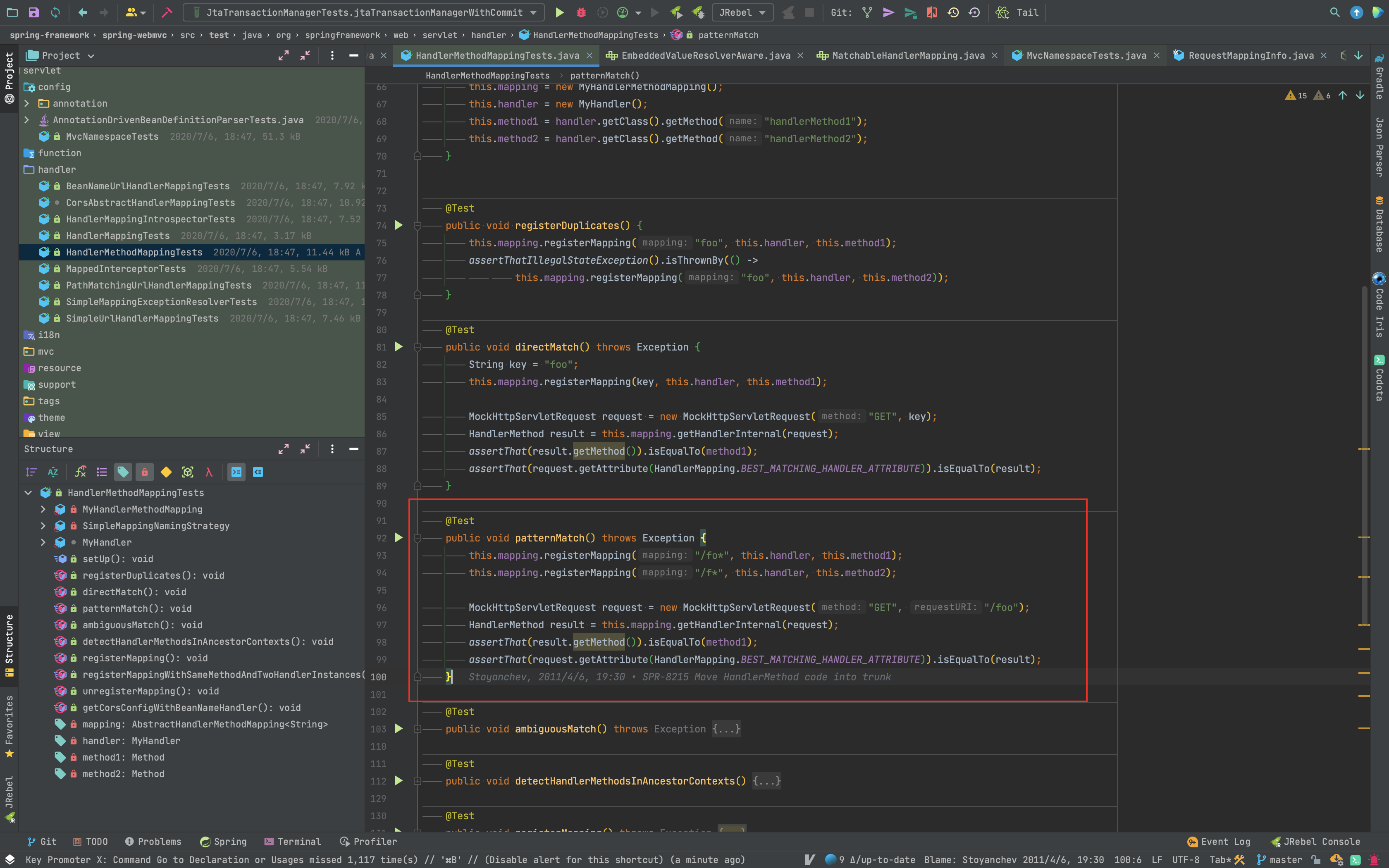

从spring的测试用例中可以看到HandlerMapping是怎样使用的
在这里插入图片描述
这段代码，就是先注册接口， 然后再模拟了处理请求，所以这个接口就是我们要用的

我们只要把需要注册的接口通过RequestMappingHandlerMapping注册就可以了，代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
@Configuration
@Order
public class RequestMappingHandlerAdapterConfig {

    @Autowired
    public void initHandlerMapping(RequestMappingHandlerMapping mapping, ApplicationContext applicationContext) {
        Map<String, Object> serviceBeans = applicationContext.getBeansWithAnnotation(Service.class);
        Collection<Object> objects = serviceBeans.values();
        ControllessRequestMappingRegister register = new ControllessRequestMappingRegister(mapping);
        register.register(objects);
    }
}

先通过applicationContext获取到service bean，然后定义了一个注册RequestMapping的注册器，在注册器中注册了需要暴露的接口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public class ControllessRequestMappingRegister {

    private final RequestMappingHandlerMapping mapping;

    public ControllessRequestMappingRegister(RequestMappingHandlerMapping mapping) {
        this.mapping = mapping;
    }

    public void register(Collection<?> mappingBeans) {
        mappingBeans.forEach(this::addMapping);
    }

    private void addMapping(Object bean) {
        Class<?> beanClass = bean.getClass();
        String simpleName = beanClass.getSimpleName();
        Class<?>[] interfaces = ClassUtils.getAllInterfacesForClass(beanClass);
        for (Class<?> itf : interfaces) {
            Method[] methods = itf.getDeclaredMethods();
            for (Method method : methods) {
                addMapping(bean, simpleName, method);
            }
        }
    }

    private void addMapping(Object bean, String className, Method method) {
        String name = method.getName();
        String path = "/" + className + "/" + name;
        RequestMappingInfo info =
                RequestMappingInfo
                        .paths(path)
                        .methods(RequestMethod.GET, RequestMethod.POST)
                        .build();
        mapping.registerMapping(info, bean, method);
        System.err.printf("ControllessRequestMappingRegister register request mapping, bean class : %s, method: %s, path: %s, http method: %s\n", className, name, path, "GET,POST");
    }


}

通过主动注册RequestMapping实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
@Configuration
@Order
public class RequestMappingHandlerAdapterConfig {

    @Autowired
    public void initHandlerMapping(RequestMappingHandlerMapping mapping, ApplicationContext applicationContext) {
        Map<String, Object> serviceBeans = applicationContext.getBeansWithAnnotation(Service.class);
        Collection<Object> objects = serviceBeans.values();
        ControllessRequestMappingRegister register = new ControllessRequestMappingRegister(mapping);
        register.register(objects);
    }

    @Autowired
    public void initMappingHandlerAdapter(RequestMappingHandlerAdapter requestMappingHandlerAdapter) {
        ControllessMethodArgumentReturnValueHandler resolverAndReturnValueHandler = new ControllessMethodArgumentReturnValueHandler(requestMappingHandlerAdapter);
        requestMappingHandlerAdapter.setReturnValueHandlers(Collections.singletonList(resolverAndReturnValueHandler));
        requestMappingHandlerAdapter.setArgumentResolvers(Collections.singletonList(resolverAndReturnValueHandler));
    }


}

先测试一下
定义一个service

1
2
3
4
5
6
7
8
@Service
public class TestService implements ITestService {

    @Override
    public String call(String name) {
        return "call me baby: " + name;
    }
}

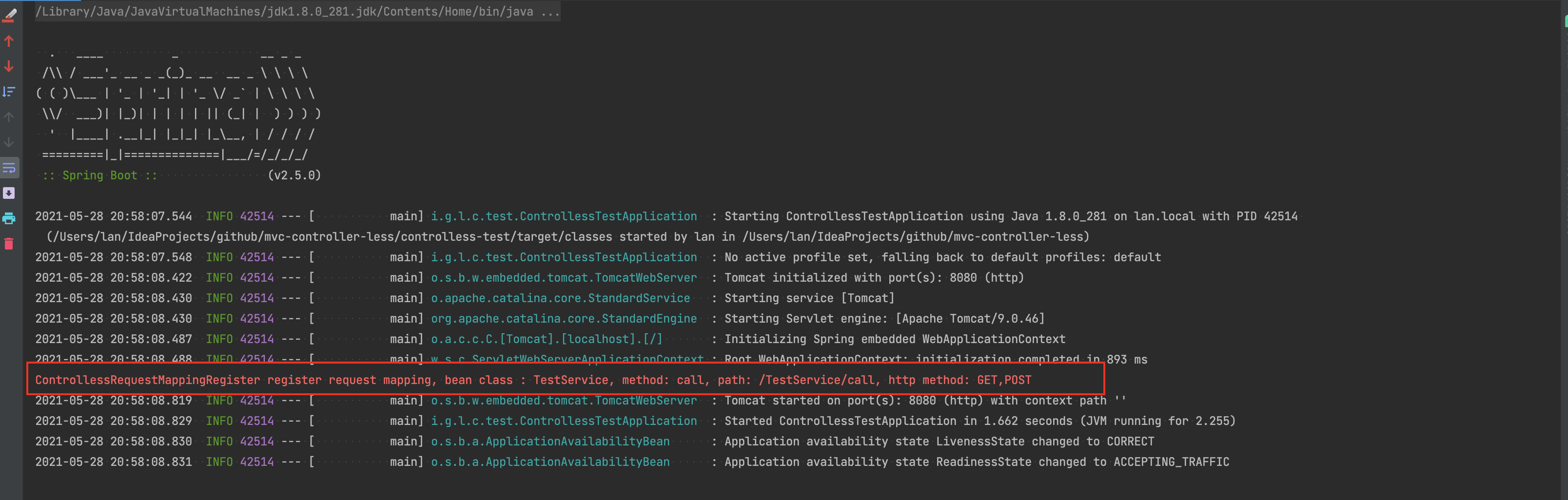

启动一下
在这里插入图片描述
有我们的这条日志

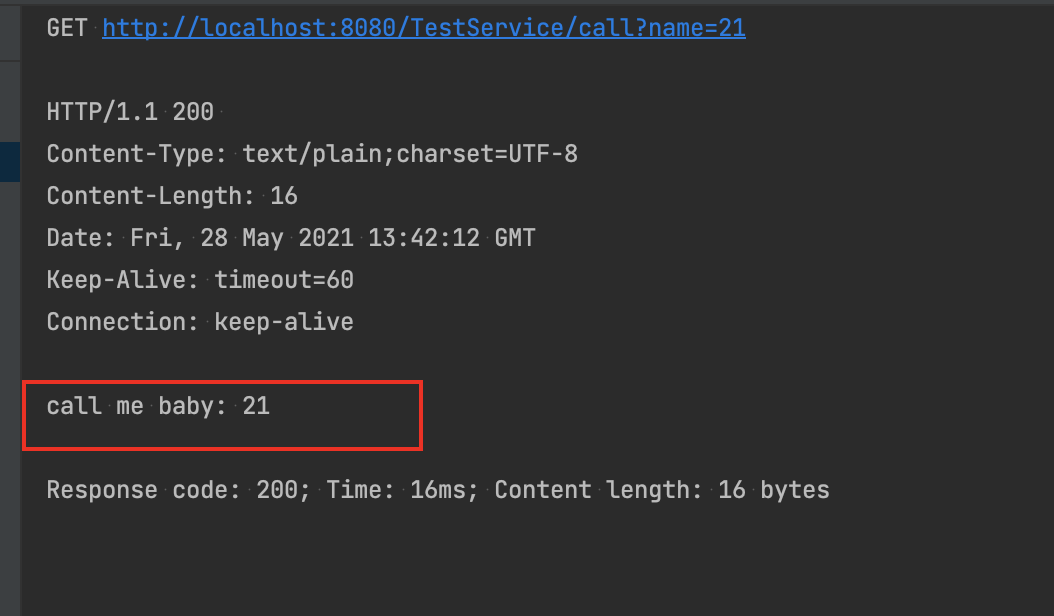

使用http访问一下试试
在这里插入图片描述

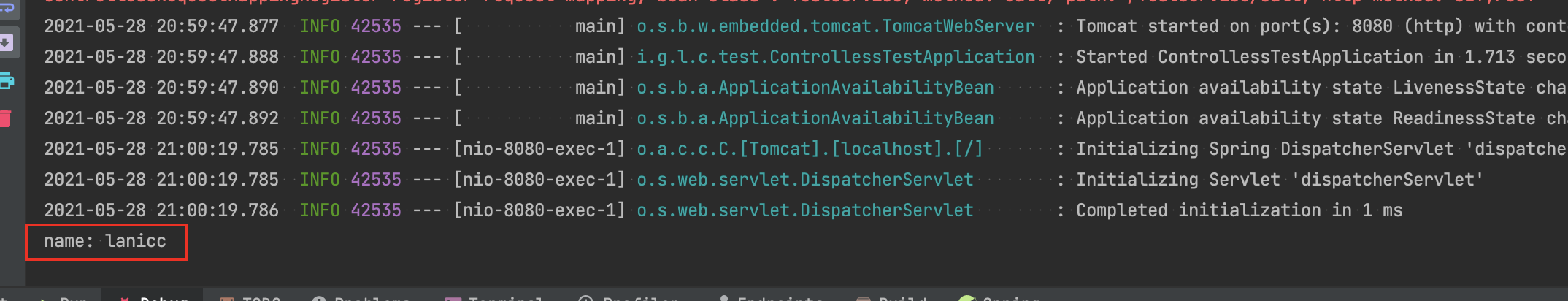

控制台信息
在这里插入图片描述
说明接口调用成功，但是返回结果的时候失败了

解决参数映射、结果映射的问题

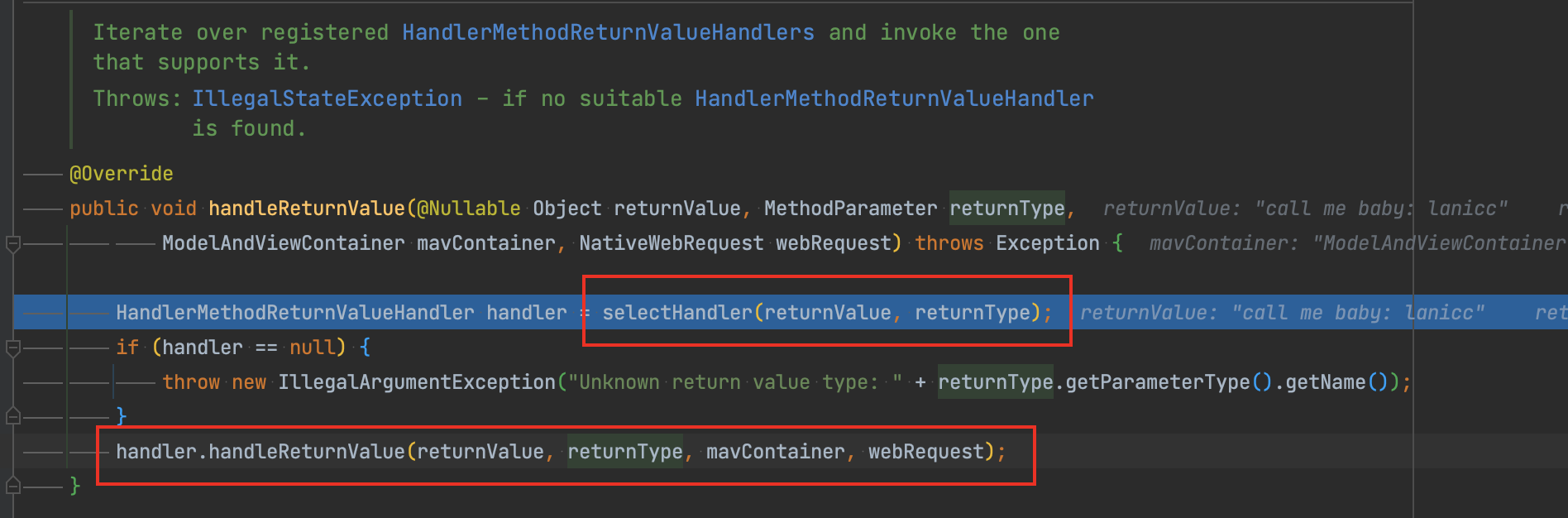

跟踪源码，发现比较重要的HandlerMethodReturnValueHandler
在这里插入图片描述
看一下selectHandler的逻辑
在这里插入图片描述
会遍历所有的returnValueHandlers，通过handler.supportsReturnType(returnType)判断handler是否支持处理该类型的返回值，如果支持就会返回这个handler，用这个handler处理返回结果，所以应该是handler匹配错误引起的调用错误。再跟一下源码，看到returnValueHandlers的内容如下

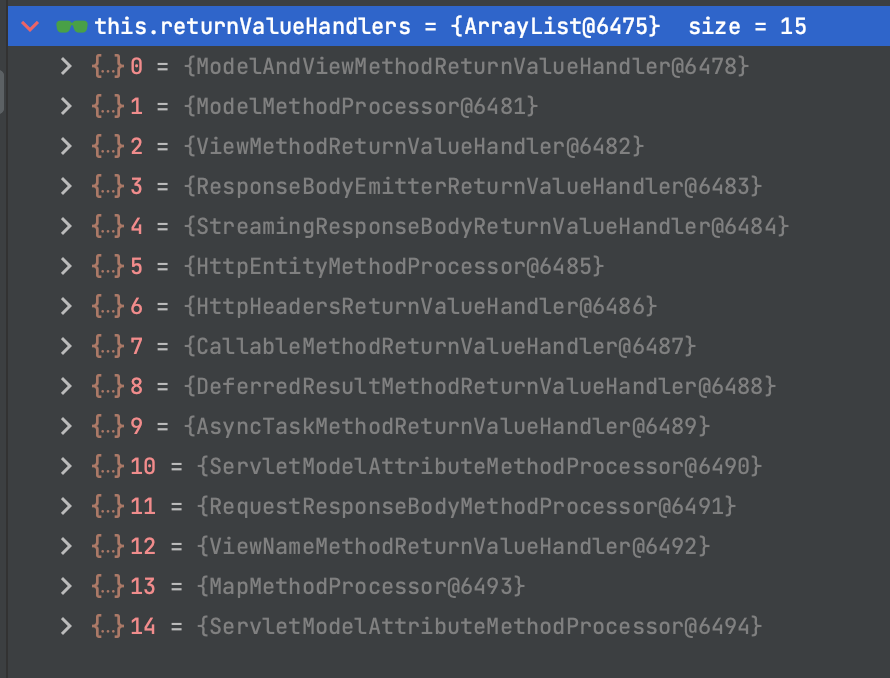

在这里插入图片描述
看这些对象的类名，大概就知道了他们支持的处理类型，
例如:
ModelAndViewMethodReturnValueHandler支持的返回值类型就是

1
2
3
4
@Override
public boolean supportsReturnType(MethodParameter returnType) {
	return ModelAndView.class.isAssignableFrom(returnType.getParameterType());
}

RequestResponseBodyMethodProcessor支持的返回值类型就是

1
2
3
4
5
@Override
public boolean supportsReturnType(MethodParameter returnType) {
	return (AnnotatedElementUtils.hasAnnotation(returnType.getContainingClass(), ResponseBody.class) ||
			returnType.hasMethodAnnotation(ResponseBody.class));
}

所以RequestResponseBodyMethodProcessor应该就是我们期望处理返回值的handler
继续跟踪源码

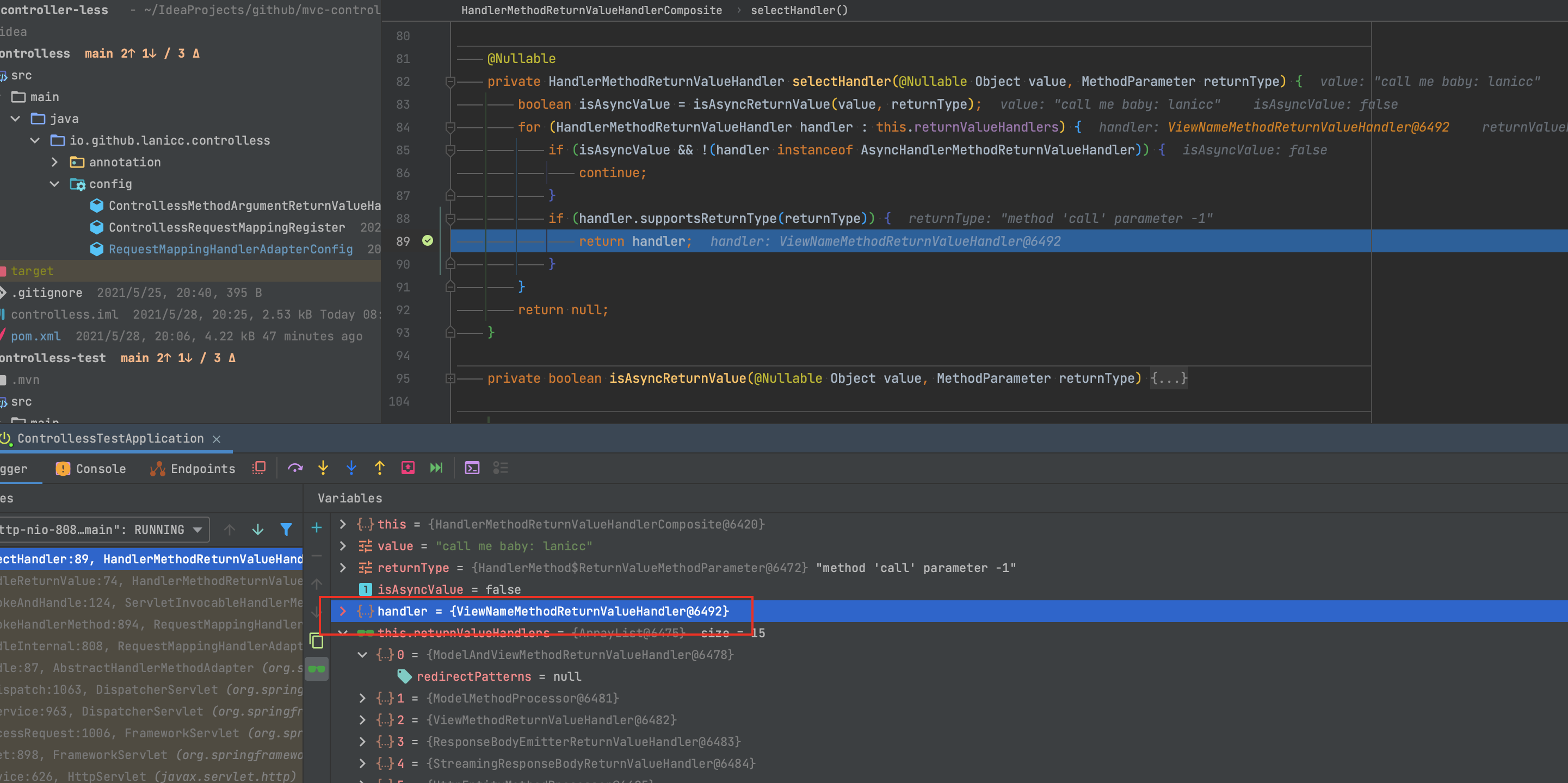

在这里插入图片描述
可以看到，此时匹配到的是ViewNameMethodReturnValueHandler，并不是我们期望的
我们期望匹配到的是RequestResponseBodyMethodProcessor，但是RequestResponseBodyMethodProcessor又只支持@ResponseBody声明的方法，我们的方法没有这个声明，所以我们只能自己实现一个RequestResponseBodyMethodProcessor，并且注册到returnValueHandlers中

返回值处理的思路就到这里
其实参数也是需要处理的，思路类似，直接贴代码喽

代码

RequestMappingHandlerAdapterConfig

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@Configuration
@Order
public class RequestMappingHandlerAdapterConfig {

    @Autowired
    public void initHandlerMapping(RequestMappingHandlerMapping mapping, ApplicationContext applicationContext) {
        Map<String, Object> serviceBeans = applicationContext.getBeansWithAnnotation(Service.class);
        Collection<Object> objects = serviceBeans.values();
        ControllessRequestMappingRegister register = new ControllessRequestMappingRegister(mapping);
        register.register(objects);
    }

    @Autowired
    public void initMappingHandlerAdapter(RequestMappingHandlerAdapter requestMappingHandlerAdapter, ApplicationContext applicationContext) {
        ControllessMethodArgumentReturnValueHandler resolverAndReturnValueHandler = new ControllessMethodArgumentReturnValueHandler(requestMappingHandlerAdapter, applicationContext);
        requestMappingHandlerAdapter.setReturnValueHandlers(Collections.singletonList(resolverAndReturnValueHandler));
        requestMappingHandlerAdapter.setArgumentResolvers(Collections.singletonList(resolverAndReturnValueHandler));
    }

}

ControllessRequestMappingRegister

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public class ControllessRequestMappingRegister {

    private final RequestMappingHandlerMapping mapping;

    public ControllessRequestMappingRegister(RequestMappingHandlerMapping mapping) {
        this.mapping = mapping;
    }

    public void register(Collection<?> mappingBeans) {
        mappingBeans.forEach(this::addMapping);
    }

    private void addMapping(Object bean) {
        Class<?> beanClass = bean.getClass();
        String simpleName = beanClass.getSimpleName();
        Class<?>[] interfaces = ClassUtils.getAllInterfacesForClass(beanClass);
        for (Class<?> itf : interfaces) {
            Method[] methods = itf.getDeclaredMethods();
            for (Method method : methods) {
                addMapping(bean, simpleName, method);
            }
        }
    }

    private void addMapping(Object bean, String className, Method method) {
        String name = method.getName();
        String path = "/" + className + "/" + name;
        RequestMappingInfo info =
                RequestMappingInfo
                        .paths(path)
                        .methods(RequestMethod.GET, RequestMethod.POST)
                        .build();
        mapping.registerMapping(info, bean, method);
        System.err.printf("ControllessRequestMappingRegister register request mapping, bean class : %s, method: %s, path: %s, http method: %s\n", className, name, path, "GET,POST");
    }


}

ControllessMethodArgumentReturnValueHandler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103

/**
 * Created on 2021/5/26.
 *
 * @author lan
 * @since 1.0
 */
public class ControllessMethodArgumentReturnValueHandler implements HandlerMethodArgumentResolver, HandlerMethodReturnValueHandler {

    private final List<HandlerMethodReturnValueHandler> returnValueHandlers;
    private final List<HandlerMethodArgumentResolver> argumentResolvers;
    private final ServiceRequestResponseBodyMethodProcessor serviceRequestResponseBodyMethodProcessor;

    private final ApplicationContext applicationContext;

    public ControllessMethodArgumentReturnValueHandler(RequestMappingHandlerAdapter requestMappingHandlerAdapter, ApplicationContext applicationContext) {
        this.returnValueHandlers = requestMappingHandlerAdapter.getReturnValueHandlers();
        this.argumentResolvers = requestMappingHandlerAdapter.getArgumentResolvers();
        this.serviceRequestResponseBodyMethodProcessor = new ServiceRequestResponseBodyMethodProcessor(requestMappingHandlerAdapter.getMessageConverters());
        this.applicationContext = applicationContext;
    }

    @Override
    public boolean supportsParameter(MethodParameter parameter) {
        return isService(parameter.getExecutable()) || argumentResolvers.stream().anyMatch(handlerMethodArgumentResolver -> handlerMethodArgumentResolver.supportsParameter(parameter));
    }

    @Override
    public Object resolveArgument(MethodParameter parameter, ModelAndViewContainer mavContainer, NativeWebRequest webRequest, WebDataBinderFactory binderFactory) throws Exception {
        if (isService(parameter.getExecutable())) {
            if (BeanUtils.isSimpleProperty(parameter.getNestedParameterType())) {
                return argumentResolvers.stream()
                        .filter(handlerMethodArgumentResolver -> handlerMethodArgumentResolver instanceof RequestParamMethodArgumentResolver)
                        .findFirst()
                        .map(handlerMethodArgumentResolver -> resolveArgument(handlerMethodArgumentResolver, parameter, mavContainer, webRequest, binderFactory))
                        .orElse(null);

            }
            return resolveArgument(serviceRequestResponseBodyMethodProcessor, parameter, mavContainer, webRequest, binderFactory);
        }
        return argumentResolvers.stream()
                .filter(handlerMethodArgumentResolver -> handlerMethodArgumentResolver.supportsParameter(parameter))
                .findFirst()
                .map(handlerMethodArgumentResolver -> resolveArgument(handlerMethodArgumentResolver, parameter, mavContainer, webRequest, binderFactory))
                .orElse(null);
    }

    @Override
    public boolean supportsReturnType(MethodParameter returnType) {
        return isService(returnType.getExecutable()) || returnValueHandlers.stream().anyMatch(returnValueHandler -> returnValueHandler.supportsReturnType(returnType));
    }

    @Override
    public void handleReturnValue(Object returnValue, MethodParameter returnType, ModelAndViewContainer mavContainer, NativeWebRequest webRequest) throws Exception {
        if (isService(returnType.getExecutable())) {
            handleReturnValue(serviceRequestResponseBodyMethodProcessor, returnValue, returnType, mavContainer, webRequest);
        } else {
            returnValueHandlers.stream()
                    .filter(returnValueHandler -> returnValueHandler.supportsReturnType(returnType))
                    .findFirst()
                    .ifPresent(returnValueHandler -> handleReturnValue(returnValueHandler, returnValue, returnType, mavContainer, webRequest));
        }
    }

    private boolean isService(Executable executable) {
        Map<String, Object> beans = applicationContext.getBeansWithAnnotation(Service.class);
        Class<?> declaringClass = executable.getDeclaringClass();
        Map<String, ?> beansOfType = applicationContext.getBeansOfType(declaringClass);
        HashSet<?> objects = new HashSet<>(beansOfType.values());
        return beans.values().stream()
                .anyMatch(objects::contains);
    }

    private Object resolveArgument(HandlerMethodArgumentResolver handlerMethodArgumentResolver, MethodParameter parameter, ModelAndViewContainer mavContainer, NativeWebRequest webRequest, WebDataBinderFactory binderFactory) {
        try {
            return handlerMethodArgumentResolver.resolveArgument(parameter, mavContainer, webRequest, binderFactory);
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }

    private void handleReturnValue(HandlerMethodReturnValueHandler returnValueHandler, Object returnValue, MethodParameter returnType, ModelAndViewContainer mavContainer, NativeWebRequest webRequest) {
        try {
            returnValueHandler.handleReturnValue(returnValue, returnType, mavContainer, webRequest);
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }

    static class ServiceRequestResponseBodyMethodProcessor extends RequestResponseBodyMethodProcessor {

        public ServiceRequestResponseBodyMethodProcessor(List<HttpMessageConverter<?>> converters) {
            super(converters);
        }

        @Override
        protected boolean checkRequired(MethodParameter parameter) {
            return true;
        }
    }

}

EnableControlless

做成了一个Springboot starter形式的jar包，所以加了个注解

1
2
3
4
5
6
7
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(RequestMappingHandlerAdapterConfig.class)
public @interface EnableControlless {
}

测试

1
2
3
4
5
6
7
8
9
@SpringBootApplication
@EnableControlless
public class ControllessTestApplication {

    public static void main(String[] args) {
        SpringApplication.run(ControllessTestApplication.class, args);
    }

}
1
2
3
4
5
6
7
8
9

public interface ITestService {

    String call(String name);

    Map<String, Object> haha(Map<String, Object> map);

    Map<String, Object> haha2(Map<String, Object> map, String name);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
/**
 * Created on 2021/5/26.
 *
 * @author lan
 * @since 1.0
 */
@Service
public class TestService implements ITestService {

    @Override
    public String call(String name) {
        System.out.println("name: " + name);
        return "call me baby: " + name;
    }

    @Override
    public Map<String, Object> haha(Map<String, Object> map) {
        System.out.println(map);
        map.put("time", LocalDateTime.now().toString());
        return map;
    }

    @Override
    public Map<String, Object> haha2(Map<String, Object> map, String name) {
        System.out.println("name: " + name + ", map: " + map);
        map.put("name", name);
        return map;
    }
}

http 请求

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
GET http://localhost:8080/TestService/call?name=21

###
GET http://localhost:8080/TestService/haha
Content-Type: application/json

{
  "author": "lanicc"
}


###
GET http://localhost:8080/TestService/haha2?name=lanicc
Content-Type: application/json

{
  "author": "lanicc",
  "call": 1111
}

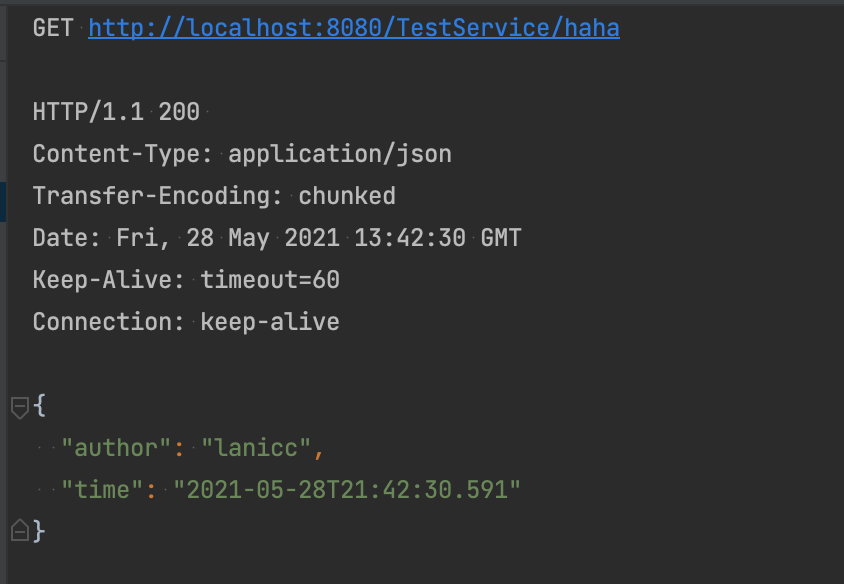

在这里插入图片描述

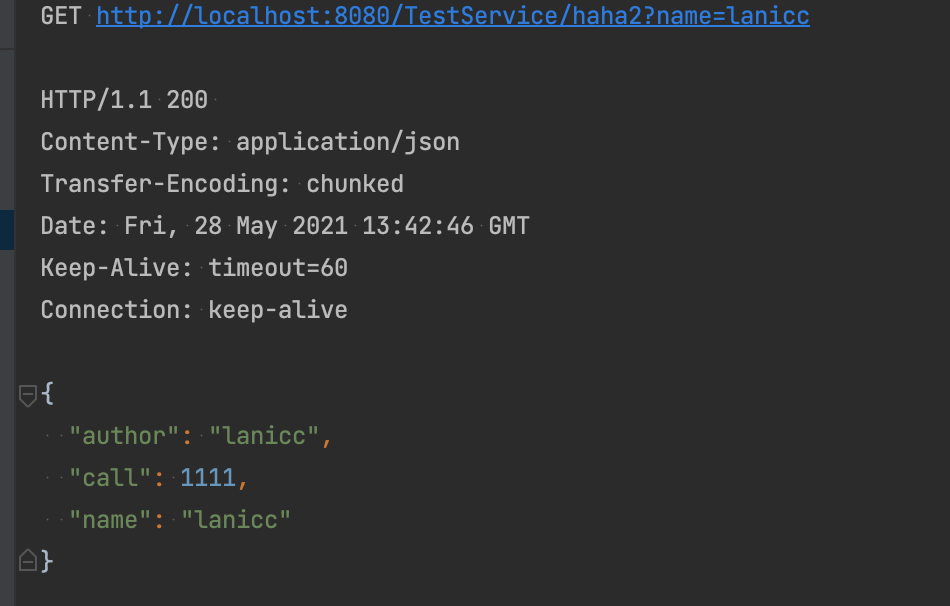

在这里插入图片描述
在这里插入图片描述

项目地址

https://github.com/lanicc/mvc-controller-less

Tags: Spring
← ZooKeeper源码阅读——启动流程 Spring的坑——Valid →
